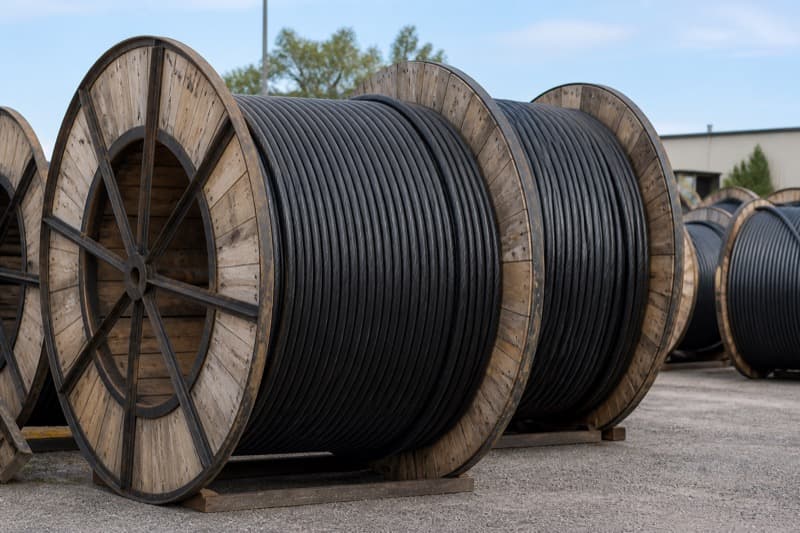

LV Power Cables
Low voltage power cable covers the 0.6/1kV class used for general power distribution, from switchgear to panel boards to motor feeds. NLS sources copper and aluminum conductor LV cable, PVC or XLPE insulated, single-core and multi-core, to IEC 60502-1 and BS 6004, for industrial, hospital and aviation project wiring across Saudi Arabia.
LV power cable is the workhorse of any electrical installation below 1kV: it carries power from the main switchboard down to distribution boards, motor control centers, and individual loads. The choice between PVC and XLPE insulation usually comes down to current rating and installation environment. PVC costs less and handles general indoor wiring fine, while XLPE carries more current on the same conductor size and holds up better on runs near heat sources or in high ambient temperature ducting, which matters on most Saudi sites.
NLS sources LV cable in single-core and multi-core (2, 3, 3.5, 4 core) configurations, copper or aluminum conductor, sized from small control circuits up to large feeder cross-sections, to IEC 60502-1 as the primary reference standard and BS 6004 where a project follows British practice. Sheath options include standard PVC and low smoke zero halogen for areas with stricter fire safety requirements.
On Saudi projects, LV cable shows up everywhere: panel-to-panel feeders, motor supply runs, lighting and small power circuits, and general distribution wiring on industrial, hospital, and aviation infrastructure builds. It's rarely the cable that gets specified down to the last detail on a BOQ, but getting the sizing wrong on a long run causes voltage drop problems that only show up once equipment is running.
A project team sends conductor size, core count, and drum length, either from a cable schedule or a rough load list, and NLS returns a priced quote in USD. Because LV cable is a high-volume, widely manufactured product, standard sizes typically source faster than the specialty cable classes on this site, though drum-length availability still depends on what a manufacturer has cut and ready.
Specifications
- ✓Voltage class: 0.6/1kV low voltage
- ✓Insulation: PVC or XLPE, sheath PVC or LSZH on request
- ✓Conductor: stranded copper or aluminum
- ✓Core count: single-core through 4-core multi-core
- ✓Standards referenced: IEC 60502-1, BS 6004
- ✓Typical use: panel feeders, motor supply, lighting and small power circuits
Frequently Asked Questions
What's the difference between PVC and XLPE for LV cable?+
XLPE handles higher continuous conductor temperatures than PVC, so it carries more current on the same cross-section. PVC costs less and is standard for general indoor wiring where the extra current capacity isn't needed.
What core counts does NLS supply for LV power cable?+
Single-core through 4-core multi-core, in copper or aluminum conductor, sized from small control circuits up to large feeder cross-sections.
How fast can NLS deliver standard LV cable in Saudi Arabia?+
Standard sizes typically move faster than specialty cable classes since LV cable is high-volume and widely manufactured, though actual lead time still depends on drum-length availability at the manufacturer.
Who supplies LV Power Cables in Saudi Arabia?+
NLS Industries (Northlane Solutions Company) supplies LV Power Cables across Saudi Arabia, including Riyadh, Jeddah, Dammam and Jubail. Send your specification and quantities to info@nlsindustries.com or info@northlanesolution.com for a quotation.
